Phase 3 : Mounting a new and much better beam for HF
After a while, the 3 element beam did not satisfy me anymore, and due to my interest in DXing, a better antenna was needed. After doing some research on the commerically available antennas, i choose a CUSHCRAFT X7. Because this has a bigger weight and longer elements than the 3 element Hy-Gain, the rotor needed replaced also. For convenience I purchased a Yeasu G-1000SX, which is capable of handling still bigger antennas than the Cushcraft, so yielding a large security range.
The mounting of the Cushcraft was done on August 26th, 1999 and the addition of the VHF beam on September 5th, 1999.
![]() |
![]() |
|

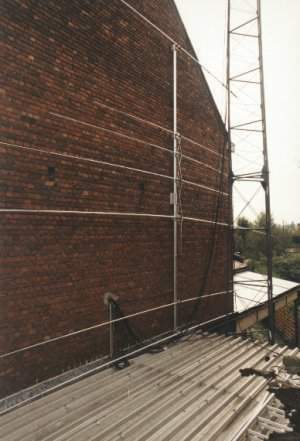

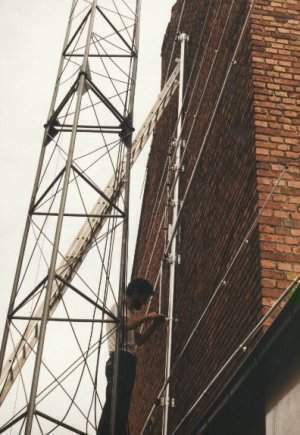

The antenna is assembled on the outer wall
of my house. |
Ready to be placed on the tower. |
|
![]() |
![]() |
|

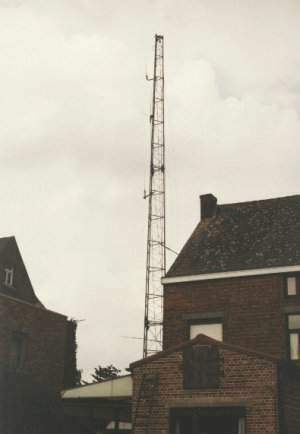

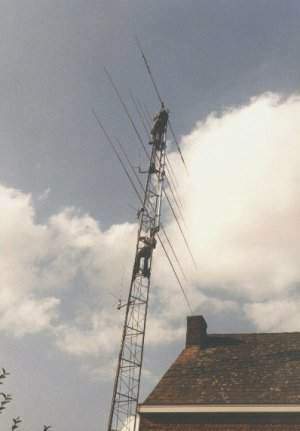

The tower, naked and awaiting a new antenna. | The cushcraft is pulled up on the tower. |
|
![]() |
![]() |
|

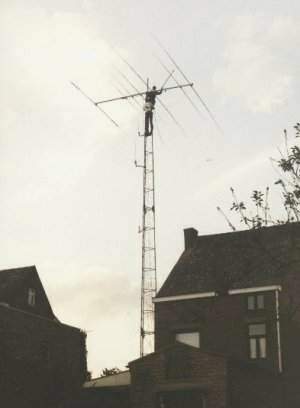

The hard part of the work is done ! |

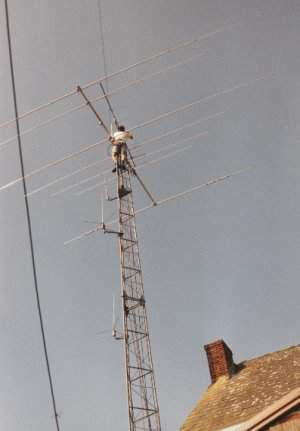

Mounting the VHF beam a few days later. |
|
![]() |
![]() |
|

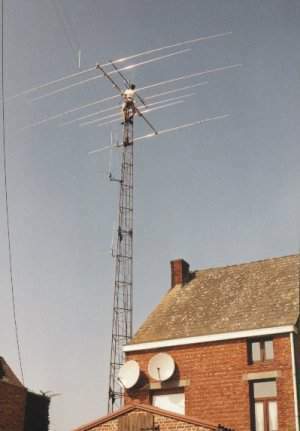

Aligning the VHF beam with the Cushcraft. |

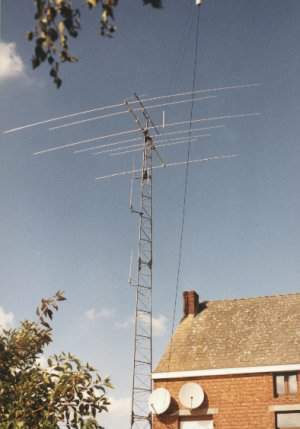

Everything ready to be used !!! |

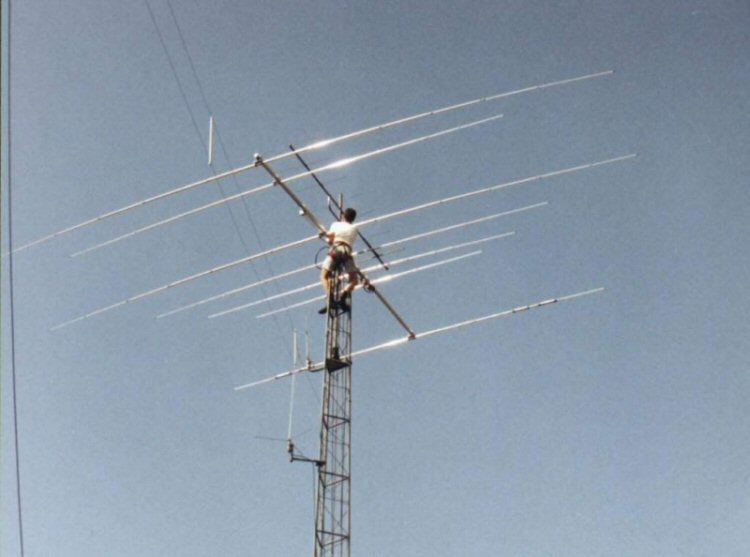

Wonna see me in detail working in my tower ? Click below for a 1024 x 750 pixel picture.
